DC Power Cable Assembly is a customized power connection solution combining DC barrel connectors with different terminal options such as JST connectors. Fengzhan provides OEM DC cable assemblies with flexible wire configurations, connector choices, and customized lengths for electronic devices, industrial equipment, and smart products.
DC Power Cable Assemblies provide a practical connection between DC power sources, barrel-style power jacks, and internal electronic circuits. Fengzhan manufactures customized assemblies using common DC connector sizes such as 5.5 × 2.1 mm and 5.5 × 2.5 mm, with the opposite end available as a JST connector, wire lead, terminal, or other specified connection.
Cable length, wire gauge, connector type, polarity, and termination can be configured according to the equipment design. These assemblies are suitable for power input and internal DC connections in electronic devices, control equipment, smart products, and other low-voltage applications. Drawings, samples, and connector specifications can be reviewed before production.

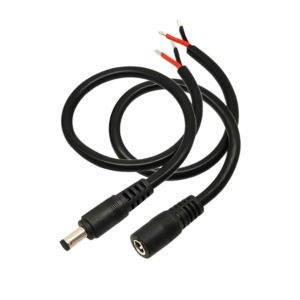

Provides a simple power connection with stripped or terminated wire leads for direct integration into customer equipment.

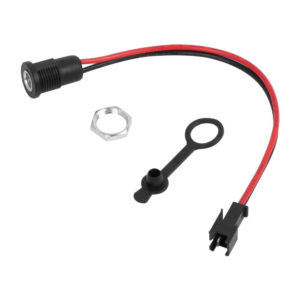

Provides a panel or device-mounted DC input connection with a customized cable and termination according to the equipment design.

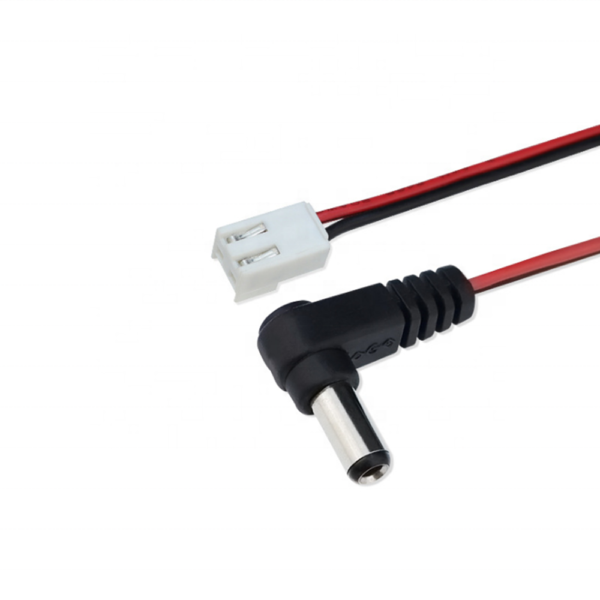

Combines a DC male plug with a JST connector for power connections between external adapters and internal circuits.

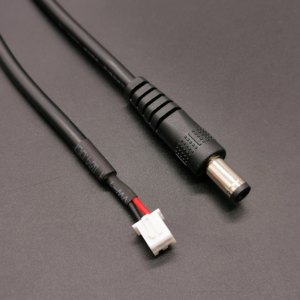

Connects a DC barrel power input to JST connectors for compact internal connections to PCBs or electronic modules.
DC Power Cable Assemblies are built around the specific electrical and mechanical requirements of the equipment they connect. Fengzhan supports common DC barrel connector configurations as well as customized cable and termination options, allowing the assembly to be adapted to different power input structures and internal layouts.

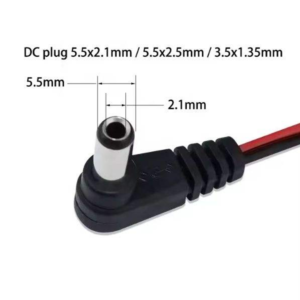

Common barrel jack sizes such as 5.5 × 2.1 mm and 5.5 × 2.5 mm can be supplied according to the required equipment interface.
The opposite end can be supplied with JST connectors, wire leads, terminals, or other specified connectors.
Cable wiring and polarity can be configured according to the electrical requirements of the target device.
Cable length and wire gauge can be selected to accommodate different power requirements and installation spaces.
The cable structure can be adapted for routing through compact electronic housings, control panels, and internal equipment spaces.
Both male DC plugs and female DC power jacks can be incorporated depending on whether the cable is used for power input, extension, or internal connection.
Fengzhan can customize DC Power Cable Assemblies around the connector, cable, and termination requirements of your equipment. Customers can specify the DC barrel connector size, such as 5.5 × 2.1 mm or 5.5 × 2.5 mm, together with male or female configurations, cable length, wire gauge, conductor count, and polarity.
The opposite end can be terminated with JST connectors, wire leads, terminals, or other specified interfaces. Additional options include cable color, labeling, heat shrink, sleeving, and protective materials. Drawings, samples, connector part numbers, and wiring requirements can be reviewed to confirm the required configuration before production.
- Cable length
- Wire quantity
- Wire gauge
- Cable color
- Pin configuration
- Connector selection
- Terminal type
- Housing selection
- Pin arrangement
- Connector replacement
- Heat shrink protection
- Braided sleeving
- Shielding layer
- Waterproof sealing
- Special insulation materials
- OEM Design
- Prototype development
- Low-volume production
- High-volume manufacturing
- Customized packaging
DC Power Cable Assemblies are typically used to bring power into or between electronic devices, while more complex equipment may require dedicated internal power wiring between multiple components. If your project involves connecting power supplies, control boards, motors, modules, or other internal components, explore our Power Wire Harness Assembly solutions for customized multi-connection power wiring.
Fengzhan applies quality checks throughout the production of DC Power Cable Assemblies, from incoming wires and connectors to final inspection. Wire preparation, stripping length, terminal crimping, connector assembly, and cable dimensions are checked against the specified requirements.
Electrical continuity testing helps verify correct circuit connections, while polarity and pin configuration can be checked according to the customer's wiring specification. Finished assemblies are inspected for connector condition, cable routing, labeling, protective materials, and overall appearance before shipment. Inspection criteria can be established around customer drawings, samples, and agreed technical specifications.
All incoming wires, connectors, terminals, and components are inspected to verify specifications, material quality, and compliance before entering the production process.
Wire cutting processes are carefully monitored to ensure accurate length, stripping dimensions, and consistent preparation for reliable assembly performance.
Crimping operations are inspected to ensure proper terminal connection, pull strength, and stable electrical performance according to production requirements.
Connector installation is checked to confirm correct pin positions, secure connections, and proper assembly quality for dependable cable performance.
Each cable assembly undergoes electrical testing to verify continuity, wiring accuracy, and reliable signal or power transmission before shipment.
Finished products are visually inspected for appearance, labeling, protection, and overall assembly quality to ensure they meet customer specifications.
1. What DC connector sizes can be used for these cable assemblies?
Fengzhan can manufacture DC power cable assemblies using common barrel connector sizes such as 5.5 × 2.1 mm and 5.5 × 2.5 mm. Other connector sizes can also be considered according to the required device interface. Customers can provide connector part numbers, drawings, or samples for confirmation before production.
2. Can a DC power cable assembly have a JST connector on the other end?
Yes. A DC barrel connector can be terminated with JST connectors such as SH, PH, XH, or other specified series. The connector type, gender, pin count, cable length, wire gauge, and wiring configuration can be customized according to the internal connection requirements of the equipment.
3. Can the polarity and cable length be customized?
Yes. Cable length, wire gauge, conductor configuration, and polarity can be manufactured according to the customer's wiring requirements. Polarity and electrical continuity can also be checked during quality inspection to help ensure that the finished assembly matches the specified connection configuration.
