Custom JST PH cable assemblies for connecting electronic components, sensors, control boards and other devices to printed circuit boards (PCBs). Cable length, wire gauge, circuit configuration, pinout and termination can be customized according to your product design and wiring requirements.
Fengzhan supports OEM cable assembly projects based on customer drawings, wiring diagrams, connector specifications or reference samples.

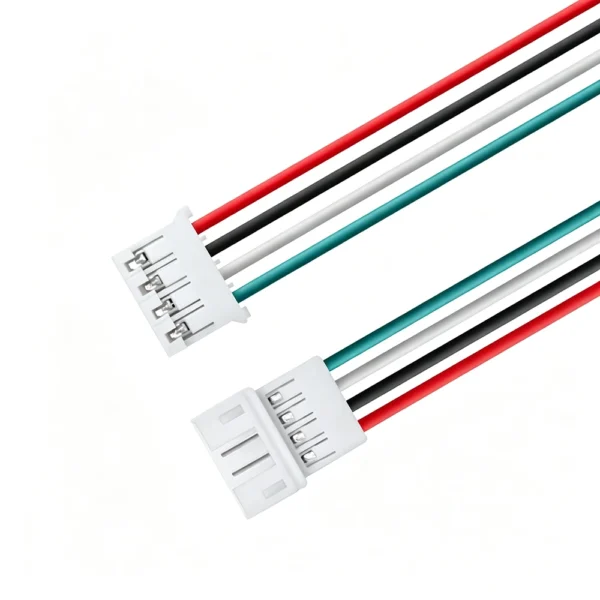

A JST PH cable assembly is a pre-assembled electrical cable that uses a compatible JST PH series connector to connect wires with a mating connector or PCB interface. The JST PH series is a 2.0 mm pitch wire-to-board connector family designed for compact internal connections in electronic equipment.
A typical assembly consists of a PH-series connector housing, compatible crimp terminals and prepared wires. Depending on the application, the assembly may connect a PCB to another electronic component, a sensor, a control board or an internal device interface.
Unlike a loose connector sold separately, a finished cable assembly includes the specified wires and termination arrangement. Cable length, wire gauge, number of circuits, pin assignment and wire identification can be defined according to the equipment design.
Fengzhan can evaluate JST PH cable assembly requirements based on drawings, wiring diagrams, connector part numbers or reference samples. The exact connector and terminal combination should be confirmed before production to ensure compatibility with the intended mating interface.
JST PH cable assemblies can be used for internal electrical connections in compatible electronic products where compact wire-to-board connections are required.
For electronic appliances and control modules, custom cable assemblies can connect compatible PCBs, internal components and control interfaces according to the product wiring design.
Custom wire assemblies can connect circuit boards with internal electronic components, providing a defined wire length, circuit arrangement and pin assignment.
A JST PH cable assembly may connect a compatible sensor or monitoring component to a PCB or control module when the connector configuration and electrical requirements match.
JST PH cable assemblies are commonly used to connect compact PCBs, control boards, sensors, switches, and electronic modules within equipment. Depending on the wiring design, the same connector platform can support different power, signal, control, and board-to-wire connection functions.

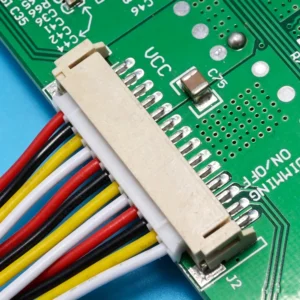

JST PH cable assemblies provide a compact interface between PCBs and external or internal wires, helping connect circuit boards with other electrical components while keeping the wiring organized.
Selected JST PH cable configurations can be used to carry defined control signals between circuit boards, switches, sensors, and electronic modules according to the customer's wiring requirements.
JST PH cables can connect separate electronic modules inside compact equipment, providing a defined wiring path between control boards, interfaces, sensors, displays, and other internal components.
JST PH assemblies can be configured for suitable low-voltage power connections between a PCB, control board, and compatible electronic components where the required current and wire specifications are within the designed application range.
JST PH is one option for compact wire-to-board connections, but PCB projects may require different connector types, pin configurations, and cable structures. If your application requires a different connector or a more customized PCB connection assembly, explore our PCB Cable Assembly solutions for additional wiring and connector configurations.

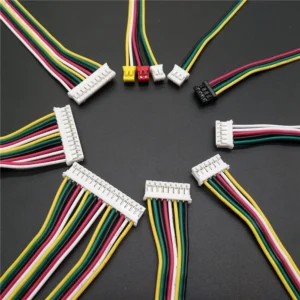

JST PH cable assemblies are available in customized configurations to meet different PCB connection and wiring requirements. Options include connector-to-wire, bare-wire termination, multiple circuit counts, specified cable lengths and customized pinouts. Each assembly can be configured according to the connector model, wiring diagram and application requirements.
A JST PH connector is assembled with prepared wires for integration into a compatible PCB or electronic interface. The free wire ends can be specified according to the required termination method.
For applications requiring a connector at one end and exposed wire ends at the other, the cable can be specified with an appropriate wire-end preparation and termination arrangement, subject to manufacturing feasibility.

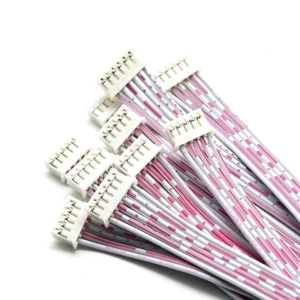

Multi-circuit assemblies can be configured according to the required connector position count, conductor count and pin assignment. The exact housing and terminal combination must be confirmed.
Cable length can be defined according to the equipment layout, routing distance and assembly requirements.
Wire-to-pin assignments can follow an approved wiring diagram, drawing or reference sample. Clear pinout documentation helps reduce connection errors during assembly.
The connector configuration can be selected to mate with the specified PCB header. The mating part number and mounting configuration should be checked before production.
JST PH cable assemblies provide a compact connection solution for applications requiring space-saving designs and reliable electrical performance. The JST PH series features a small pitch design suitable for modern electronic devices with limited installation space.
Fengzhan manufactures JST PH cable assemblies with precise wire preparation, secure terminal crimping, and accurate connector installation to ensure stable connections. Customers can select different wire specifications, cable lengths, and connector configurations according to their product requirements. These characteristics make JST PH assemblies ideal for PCB connections, sensors, control modules, and compact electronic systems.
The JST PH series uses a 2.0 mm pitch connector design, making it relevant to compact wire-to-board connections. Confirm the exact connector model and mating interface for the intended PCB.
The cable can be specified to suit internal routing, enclosure dimensions and the distance between connected components.
The connector position count and conductor arrangement can be selected according to the required electrical interface.
Wire gauge, insulation and conductor specifications can be selected based on the connector's compatible wire range and the application's electrical and mechanical requirements.
Pin assignments and wire colors can be defined according to the approved wiring diagram and project requirements.
Customers can provide connector part numbers, drawings, BOMs, wiring diagrams or reference samples to help define the required cable assembly.
Fengzhan can customize JST PH cable assemblies around the electrical and mechanical requirements of each project. Customers can specify connector gender, pin count, wire length, wire gauge, conductor construction, insulation material, and cable color. For PCB and internal wiring applications, the wire arrangement and termination can be configured to match the required board connection and installation space.
Additional processing such as wire stripping, crimping, labeling, heat-shrink protection, and customized cable routing can also be considered. Customers can provide drawings, samples, BOMs, or connector specifications for engineering review before prototype and production.
- Overall cable length
- Wire gauge and conductor count
- Conductor and insulation specifications
- Wire colors and identification
- Cable routing and installation requirements
- JST PH connector part number
- Required number of connector positions
- Mating PCB header or interface details
- Compatible terminal and housing combination
- Connector-to-wire termination arrangement
- Pinout and wiring diagram
- Signal, power or combined circuit requirements
- Operating voltage and current
- Electrical isolation or other specified requirements
- Relevant application and operating conditions
- Available installation space
- Required wire-end preparation
- Labels and identification, where available
- Sample quantity and production quantity
- Packaging and delivery requirements
Send us your connector part number, wiring diagram, required cable length and estimated quantity. If a complete drawing is not available, provide the information or sample you have for an initial review.
Fengzhan applies controlled inspection procedures throughout JST PH cable assembly production to verify connector configuration, wire processing, crimping quality, and electrical continuity. Incoming wires and JST PH connectors are checked before assembly, while wire cutting and stripping are monitored for consistent processing.
Crimped terminals are inspected to ensure proper assembly, and connector installation is verified against the required pin configuration. Finished assemblies can undergo continuity and wiring checks before final inspection. Cable length, connector condition, labeling, protection, and overall appearance are reviewed before shipment according to the applicable project requirements.
Review the connector part number, mating interface, wire specification, cable length, circuit count and pinout before production.
Prepare the specified wire, connector housing and compatible terminals according to the approved product configuration.
Cut the wire to the required length and prepare the wire ends according to the specified termination process.
Terminate the wires using the specified compatible terminals and assemble the connector according to the approved configuration.
Perform applicable checks, such as continuity and pinout verification, according to the order's inspection requirements.
Check the finished cable assembly against the approved specification, including connector configuration, cable dimensions, wire identification and applicable electrical test results.
1. What is the pitch of a JST PH connector?
The JST PH series has a 2.0 mm pitch. Confirm the connector series and exact part number before ordering, as other connector series may look similar but have different dimensions or mating interfaces.
2. Can you manufacture custom JST PH cable assemblies?
Fengzhan can evaluate custom cable assembly requirements based on the specified connector, wire, cable length, circuit configuration and pinout. Final feasibility depends on the selected components and production requirements.
3. Can I customize the cable length and wire gauge?
Cable length and wire gauge can be specified according to the application. The selected wire must be compatible with the connector terminals and suitable for the intended electrical and installation conditions.
4. Can you customize the pinout?
Yes. Provide an approved wiring diagram, pin assignment table, drawing or reference sample so the required conductor-to-pin connections can be reviewed.
5. Can you make a JST PH cable from a sample?
A reference sample can help identify the connector configuration, cable dimensions, wire colors and termination arrangement. Providing a drawing or connector part number alongside the sample can make specification review more accurate.
6. How do I confirm that the connector will fit my PCB?
Provide the PCB header part number, connector drawing or component specification. The mating interface and connector orientation should be verified before production rather than relying on appearance alone.
7. What information is needed for a quotation?
Please provide as much of the following as possible:
A complete drawing is helpful but not always required for an initial review.
