Custom cable assemblies using Molex 5557 series connectors for power, signal and equipment-level connections. Wire gauge, cable length, circuit count, connector configuration and pinout can be customized for OEM applications.
A Molex 5557 cable assembly is a pre-terminated cable solution built with Molex 5557 series connectors for organized power, signal and internal equipment connections. The 4.2 mm pitch connector format supports multi-circuit wiring between PCBs, power circuits, control boards and electronic modules.
Fengzhan provides customized Molex 5557 cable assemblies based on customer drawings, samples, BOMs or wiring requirements. Cable length, wire gauge, circuit count, connector configuration and pinout can be adapted to the application.
Suitable for internal equipment wiring where multiple circuits need to be organized through a connectorized cable assembly.
Used for internal power and control connections between boards, modules and electrical components in industrial equipment.
Suitable for multi-circuit power distribution and control wiring where a defined connector interface is required.

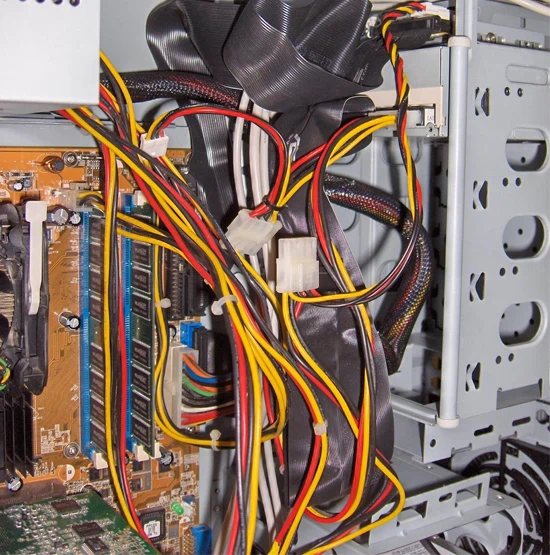

Used for PCB-to-module and internal power or signal connections in electronic devices.
The 5557 connector platform can be configured for several wiring functions inside electronic and electrical equipment. Depending on the circuit design, these assemblies may be used for board power, multi-wire distribution, control connections, or internal connections between separate modules.
5557 cable assemblies can connect power circuits between a PCB and an external power source or internal module, providing an organized multi-conductor connection.
Multiple conductors can be arranged within one connector assembly to distribute defined power circuits between boards, modules, and other electrical components.
The assembly can provide a structured connection between a circuit board and a separate electronic module, reducing the need for individually routed wires inside the equipment.
Selected circuits can be used for control or interface connections between control boards, switches, displays, and other internal electronic components according to the wiring design.
Molex 5557 can be suitable for multi-wire power and internal equipment connections, while some projects require a smaller connector format because of limited installation space. If your application prioritizes a more compact connection for power or signal wiring, see our Molex Micro-Fit 3.0 Cable Assembly for another connectorized cable option.
Need a smaller connector format? See our Molex Micro-Fit 3.0 Cable Assembly.
Molex 5557 cable feature a durable connector design suitable for applications requiring reliable electrical performance and mechanical stability. The Mini-Fit Jr. series provides a larger connector structure compared with compact connector solutions, making it suitable for power distribution and equipment-level wiring applications.
Fengzhan ensures accurate wire preparation, terminal crimping, connector assembly, and inspection during production. Customers can select different wire specifications, connector combinations, and cable configurations according to project requirements. These features make Molex 5557 cable assemblies a dependable choice for industrial electronics, automation systems, and power-related applications.
Molex 5557 to Molex 5557 cable assemblies use Molex 5557 series connectors on both ends to create a connectorized connection between two compatible interfaces. This configuration is suitable for equipment wiring, power distribution and module-to-module connections where a detachable cable is preferred. Connector housing, circuit count, wire specification, cable length and pinout can be customized according to the application.
Molex 5557 to PCB cable assemblies connect a PCB or control board with a Molex 5557 connector interface. This configuration can be used for power, control or signal connections between a circuit board and another component or cable. Wire gauge, circuit count, cable length, connector orientation and pin assignment can be customized based on the PCB layout and electrical requirements.
Molex 5557 to bare wire cable assemblies combine a Molex 5557 connector on one end with prepared wires on the other end. This configuration provides flexibility when the cable needs to connect directly to terminals, terminal blocks, customer-defined components or another wiring system. Wire gauge, wire length, wire color, stripping and termination requirements can be customized for different OEM applications.
Multi-circuit Molex 5557 cable assemblies integrate multiple conductors into a single connectorized cable to simplify power, control or signal wiring. The circuit count, wire gauge, wire color, pinout and cable length can be configured according to the application. This approach can help organize multiple electrical connections within equipment while reducing separate individual wires and simplifying installation.
For applications requiring a keyed connector configuration, see our dedicated Molex 5557 Keyed Wire Harness Assembly for more details on this specific wiring solution.
Molex 5557 cable feature a durable connector design suitable for applications requiring reliable electrical performance and mechanical stability. The Mini-Fit Jr. series provides a larger connector structure compared with compact connector solutions, making it suitable for power distribution and equipment-level wiring applications.
Fengzhan ensures accurate wire preparation, terminal crimping, connector assembly, and inspection during production. Customers can select different wire specifications, connector combinations, and cable configurations according to project requirements. These features make Molex 5557 cable assemblies a dependable choice for industrial electronics, automation systems, and power-related applications.
Molex 5557 connectors feature a 4.2 mm pitch format designed for multi-circuit electrical connections. The connector interface provides a defined connection between wires, boards and equipment components. Depending on the project requirements, Fengzhan can configure the connector housing, circuit count and mating arrangement as part of a customized cable assembly.
Molex 5557 cable assemblies can accommodate multiple circuits within a single connectorized assembly, allowing several electrical connections to be organized through one interface. This can simplify equipment wiring compared with using multiple individual connections. Circuit count, wire gauge, wire color and pin assignment can be specified according to the customer's electrical and mechanical requirements.
Molex 5557 cable assemblies can be configured for both wire-to-wire and wire-to-board applications. This allows the same connector series to be used for different equipment wiring requirements, including cable-to-cable and PCB-related connections. The connector configuration, cable construction, circuit count and pinout can be customized based on the target interface.
The cable construction can be customized according to the electrical and mechanical requirements of the application. Available specifications may include wire gauge, conductor quantity, wire color, insulation and cable length. Customers can provide their required wire specification or drawing, allowing the cable assembly to be manufactured according to the defined project requirements.
The pinout of a Molex 5557 cable assembly can be arranged according to the required circuit connection. Different wires can be assigned to specific connector positions based on the customer's wiring diagram or pin assignment. This is particularly useful for OEM applications where the cable must match a specific PCB, control module or equipment interface.
Molex 5557 cable assemblies use crimped terminal connections between the wire conductors and connector contacts. The terminal crimping process forms the electrical and mechanical connection before the terminals are inserted into the connector housing. Wire and terminal specifications can be selected according to the connector configuration and project requirements.
Fengzhan can configure these connectorized cables around the electrical layout and mechanical requirements of your equipment. Customization may include connector gender, circuit count, wire gauge, cable length, wire color, insulation material, and terminal configuration. The wire arrangement can also be adapted to match the positions of PCBs, control modules, and other connection points inside the equipment.
Additional processing such as stripping, crimping, labeling, heat-shrink protection, and sleeving can be considered when required. Customers can submit drawings, samples, BOMs, or existing cable specifications so our engineering team can review the proposed construction before production.
- Cable length
- Wire quantity
- Wire gauge
- Cable color
- Pin configuration
- Connector selection
- Terminal type
- Housing selection
- Pin arrangement
- Connector replacement
- Heat shrink protection
- Braided sleeving
- Shielding layer
- Available when required by the project
- OEM Design
- Prototype development
- Low-volume production
- High-volume manufacturing
- Customized packaging
Fengzhan checks connectorized cable assemblies throughout production to help maintain consistent wiring and termination quality. Incoming wires, connectors, and terminals are inspected before processing. Wire cutting and stripping are monitored for the required dimensions, while crimped terminals are checked for proper assembly.
Connector insertion and pin positions are verified against the specified wiring configuration. Finished assemblies can undergo continuity and wiring checks to identify incorrect or open circuits before shipment. Final inspection also covers cable length, connector condition, labeling, protective materials, and overall appearance according to the applicable project requirements.
All incoming wires, connectors, terminals, and components are inspected to verify specifications, material quality, and compliance before entering the production process.
Wire cutting processes are carefully monitored to ensure accurate length, stripping dimensions, and consistent preparation for reliable assembly performance.
Crimping operations are inspected to ensure proper terminal connection, pull strength, and stable electrical performance according to production requirements.
Connector installation is checked to confirm correct pin positions, secure connections, and proper assembly quality for dependable cable performance.
Each cable assembly undergoes electrical testing to verify continuity, wiring accuracy, and reliable signal or power transmission before shipment.
Finished products are visually inspected for appearance, labeling, protection, and overall assembly quality to ensure they meet customer specifications.
