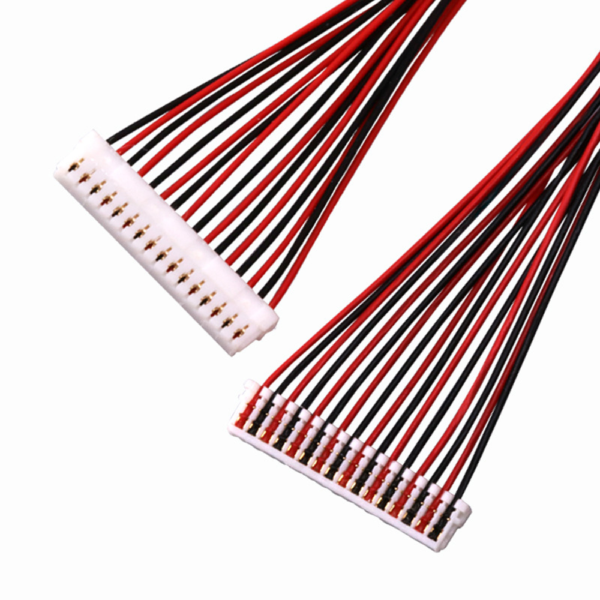

Compact JST SUR cable assemblies with 0.8mm pitch IDC connectors for space-saving electronic wiring. Custom conductor counts, cable lengths, and connector configurations are available for OEM applications.
The JST SUR cable assembly is designed for compact electronic wiring applications where connector size, cable organization, and reliable board-level connection are important. Its 0.8 mm pitch IDC connector configuration provides a compact interface while the flat cable structure helps maintain an organized wiring layout.
Fengzhan offers customized SUR series cable assemblies with different conductor counts, cable lengths, connector configurations, and processing requirements. The assembly can be manufactured according to customer drawings, samples, or application specifications.
This type of cable assembly is suitable for internal electronic equipment, control systems, communication devices, test equipment, and other applications requiring compact wire-to-board connections. The 0.8 mm SUR connector system is specifically designed for compact ribbon-cable applications.
The JST SUR cable assembly combines a compact connector footprint with organized flat-cable construction, making it suitable for space-constrained electronic applications.
The SUR family is documented by JST as a 0.8 mm-pitch IDC solution for ribbon cable, while distributor listings describe its compact, low-profile construction.
Compact connector spacing for high-density wiring.
Efficient insulation displacement termination for reliable connections.
Suitable for internal equipment with limited installation space.
Parallel conductors help maintain neat and consistent routing.
Different conductor counts can be customized according to requirements.
Cable length and assembly configuration can be produced to customer specifications.

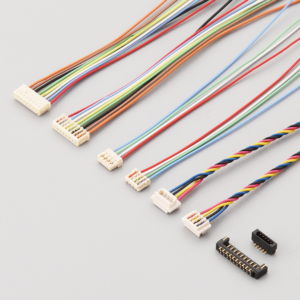

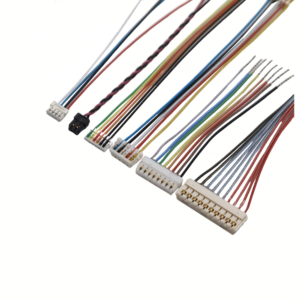

Fengzhan provides flexible customization for SUR series cable assemblies based on customer drawings, samples, or technical specifications. Customers can define the conductor count, cable length, connector configuration, and wiring requirements according to their application.
Available customization options include:
For OEM projects, we can support prototype samples before volume production, helping customers verify connector orientation, cable length, and electrical continuity before final production.
- Cable length
- Wire quantity
- Wire gauge
- Cable color
- Pin configuration
- Connector selection
- Terminal type
- Housing selection
- Pin arrangement
- Connector replacement
- Heat shrink protection
- Braided sleeving
- Shielding layer
- Waterproof sealing
- Special insulation materials
- OEM Design
- Prototype development
- Low-volume production
- High-volume manufacturing
- Customized packaging
Fengzhan applies quality control throughout the cable assembly process to ensure consistent connection performance and reliable production quality.
For customized assemblies, production can be controlled according to customer drawings, samples, specifications, and approved assembly requirements. This helps maintain consistent pin configuration, cable length, connector orientation, and electrical performance across production batches.
All incoming wires, connectors, terminals, and components are inspected to verify specifications, material quality, and compliance before entering the production process.
Wire cutting processes are carefully monitored to ensure accurate length, stripping dimensions, and consistent preparation for reliable assembly performance.
Crimping operations are inspected to ensure proper terminal connection, pull strength, and stable electrical performance according to production requirements.
Connector installation is checked to confirm correct pin positions, secure connections, and proper assembly quality for dependable cable performance.
Each cable assembly undergoes electrical testing to verify continuity, wiring accuracy, and reliable signal or power transmission before shipment.
Finished products are visually inspected for appearance, labeling, protection, and overall assembly quality to ensure they meet customer specifications.
1. What is a JST SUR cable assembly?
A JST SUR cable assembly is a compact cable assembly using the SUR series IDC connector system. It uses a 0.8 mm pitch connection designed for space-efficient electronic wiring.
2. Can the JST SUR cable assembly be customized?
Yes. Fengzhan can customize conductor count, cable length, wire specifications, connector configuration, pin orientation, labeling, and packaging according to customer requirements.
3. What applications are suitable for JST SUR cable assemblies?
SUR cable assemblies are suitable for compact electronic equipment, control systems, communication devices, test equipment, and other applications requiring space-saving wire-to-board connections.
